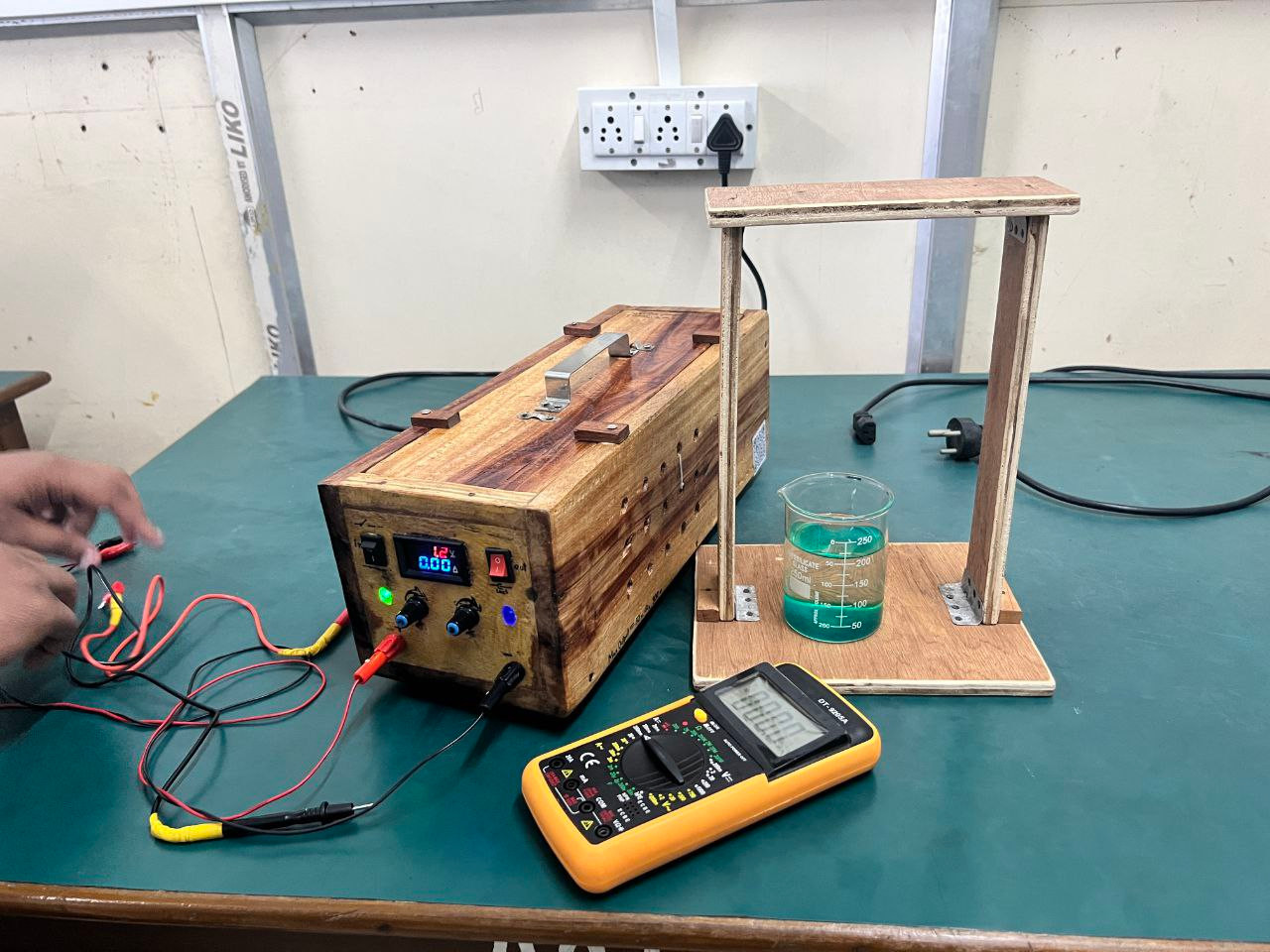

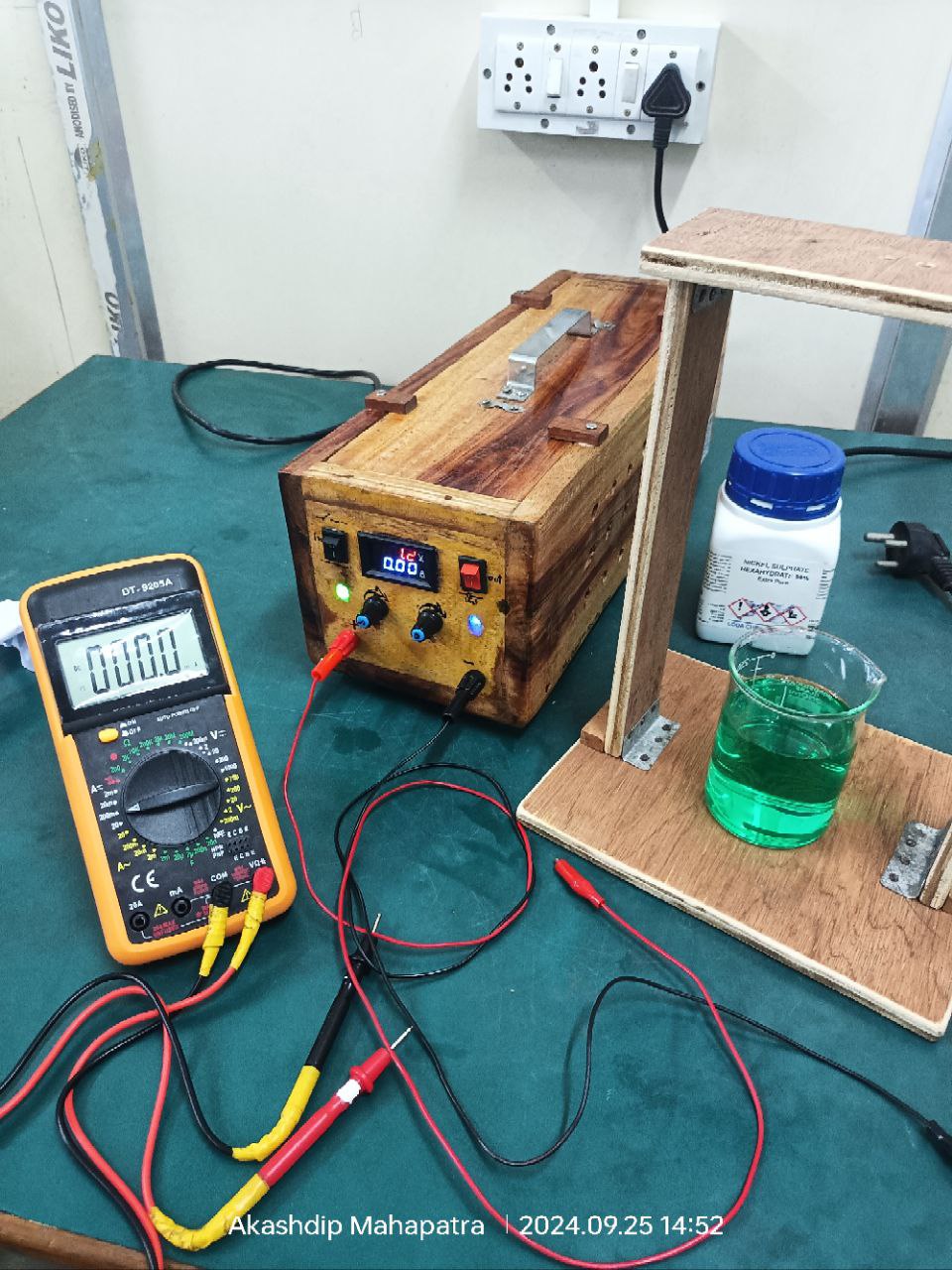

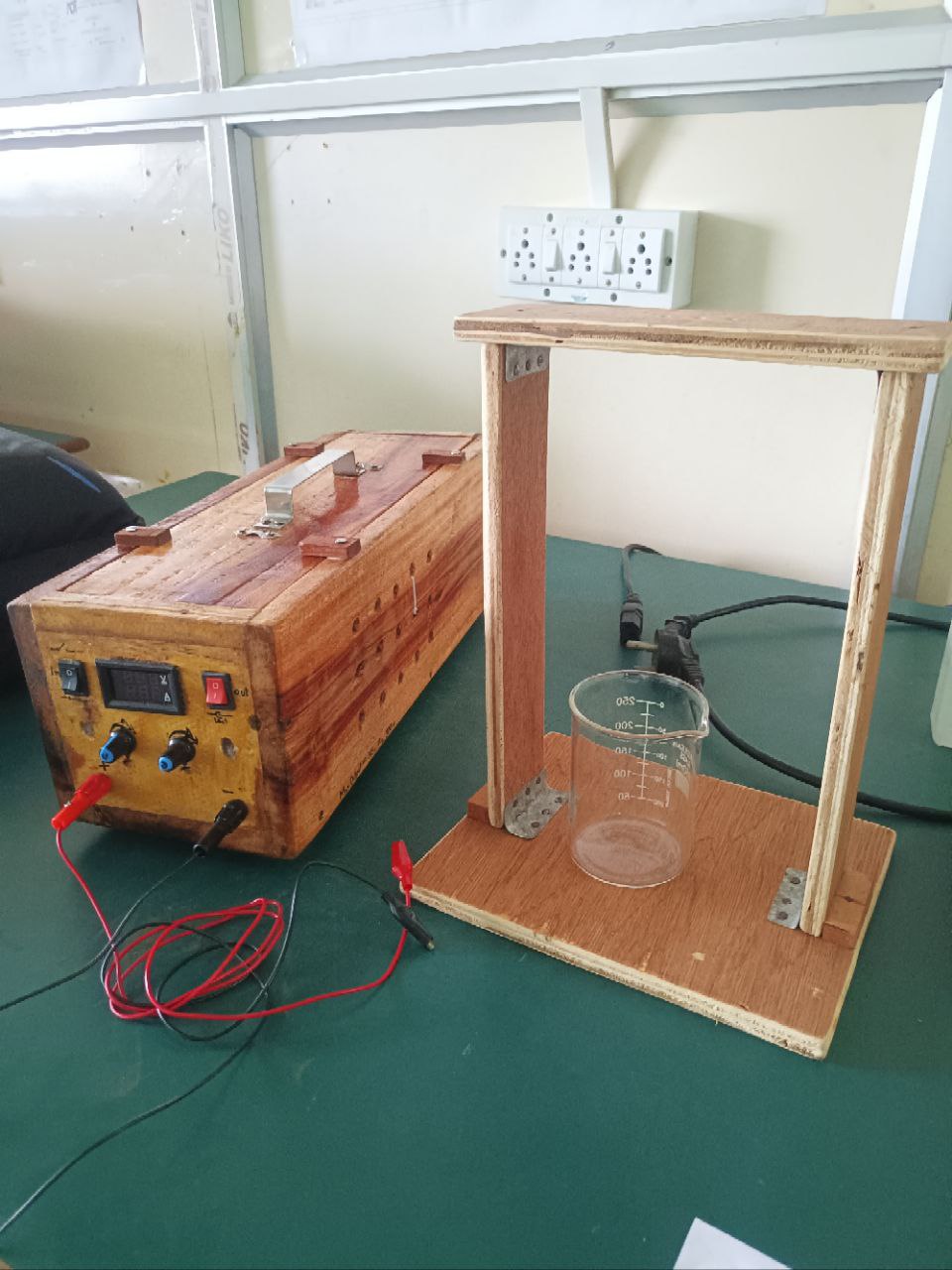

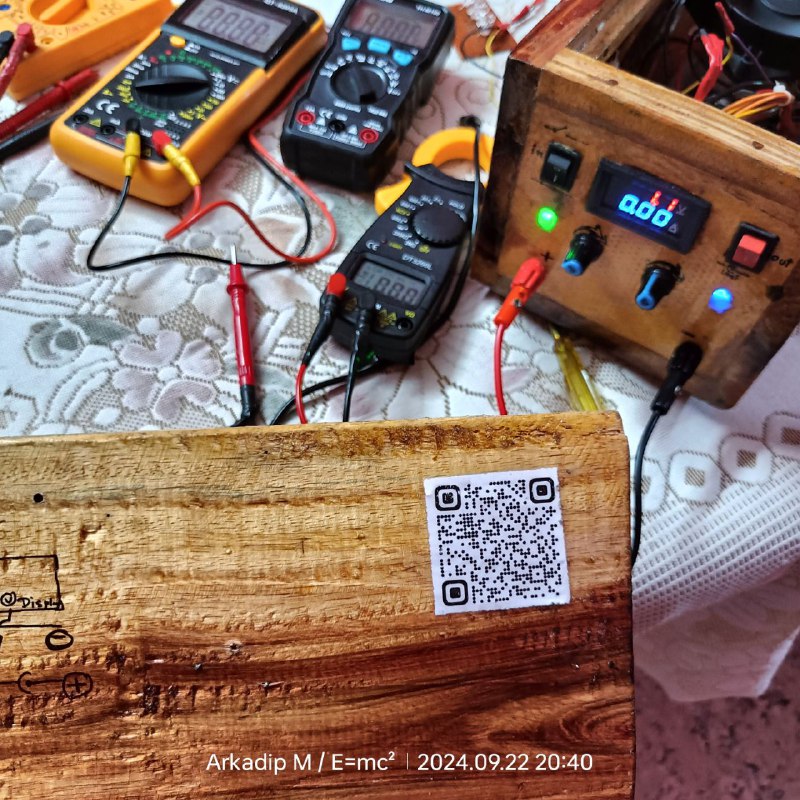

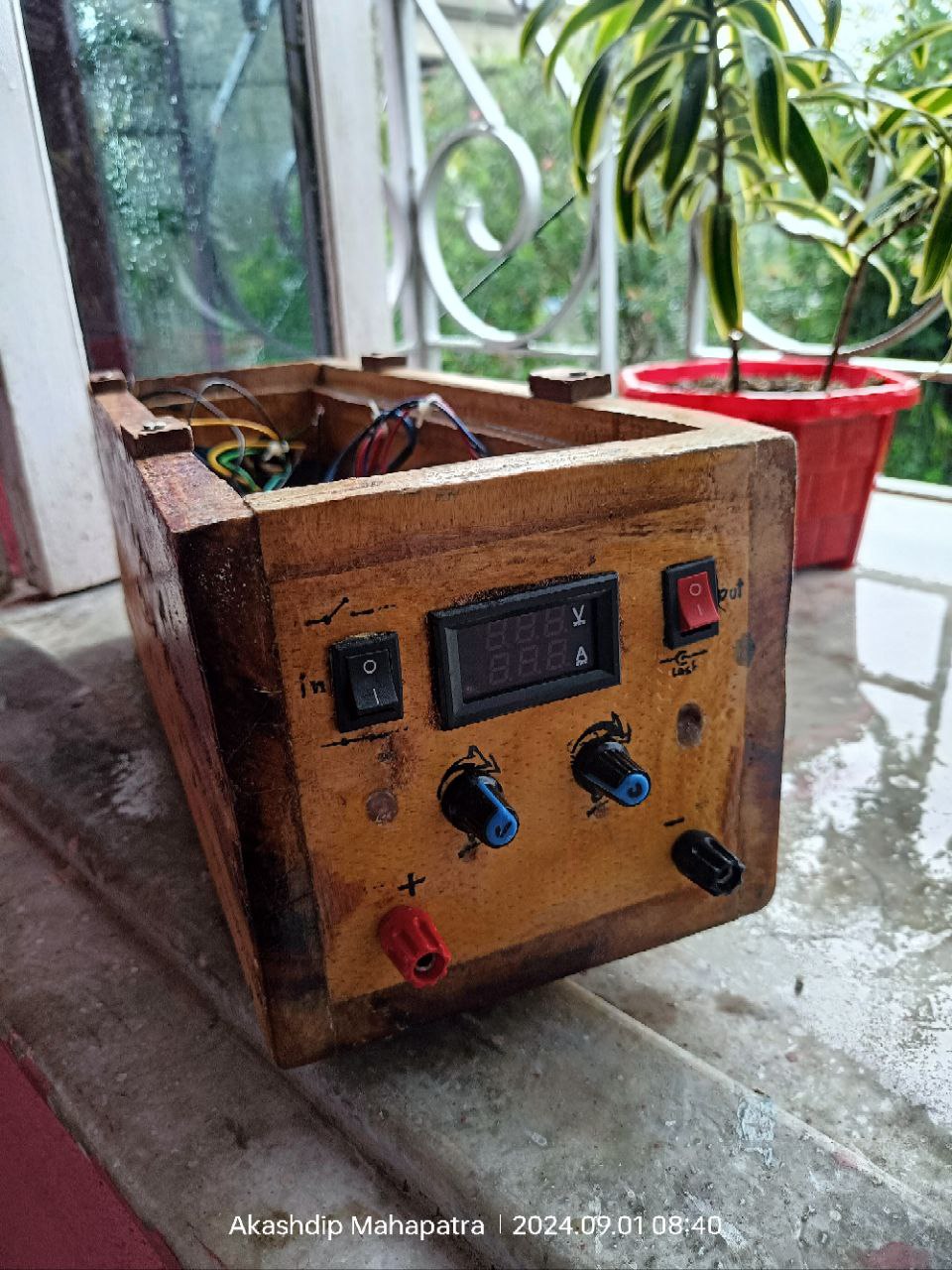

✅ SPECIFICATION

  1. 300 WATT POWER SUPPLY
  2. MAX OUT-PUT 10A & 30 Volt
  3. Safety limit 3A & 20 Volt

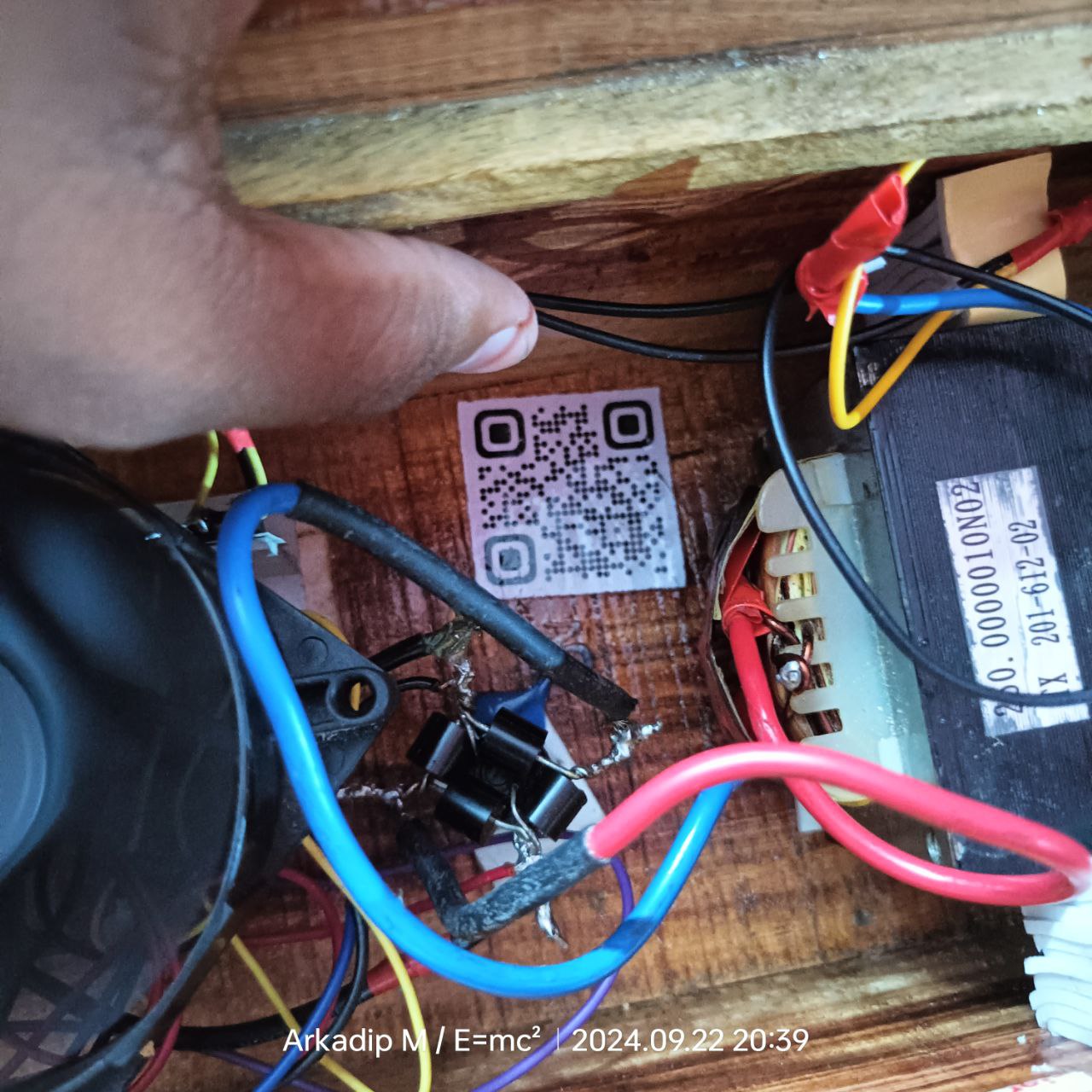

  4. Transformer capacity 50A
  5. 2mm + 4mm copper wire inside
  6. Short-circuit Resistance with a LED indicator
  7. Separate 3Volt power supply for Display

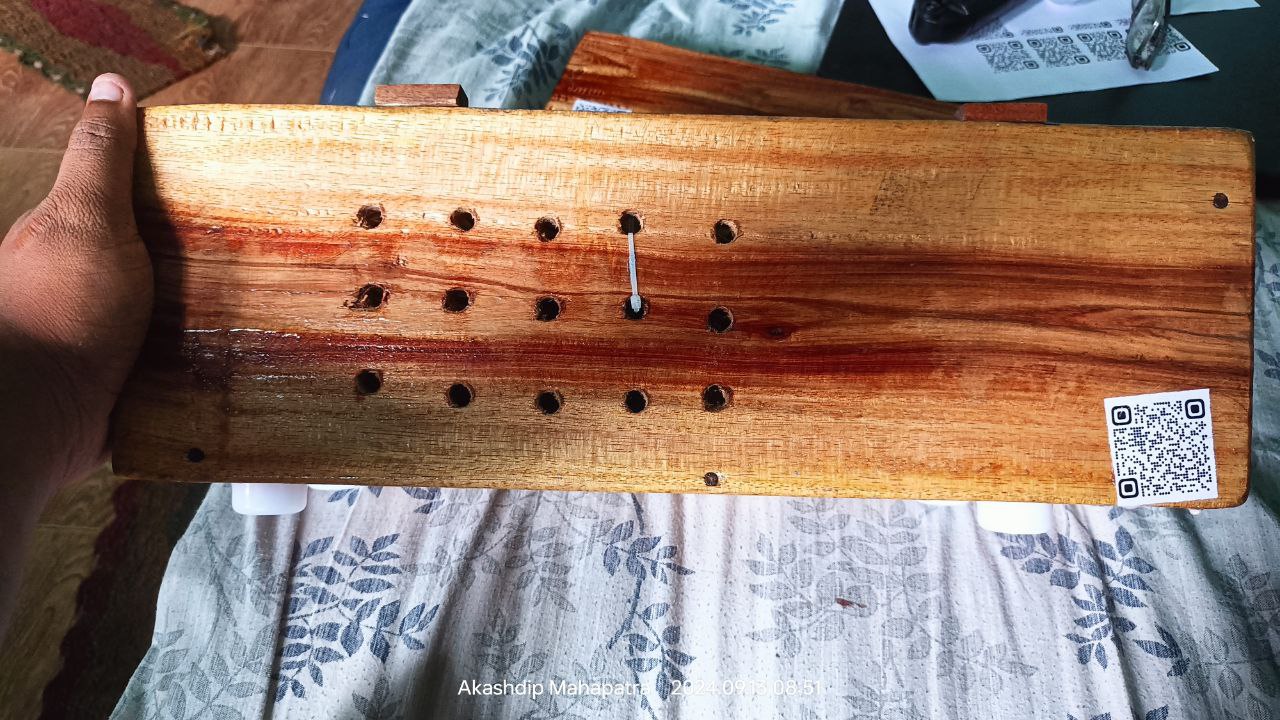

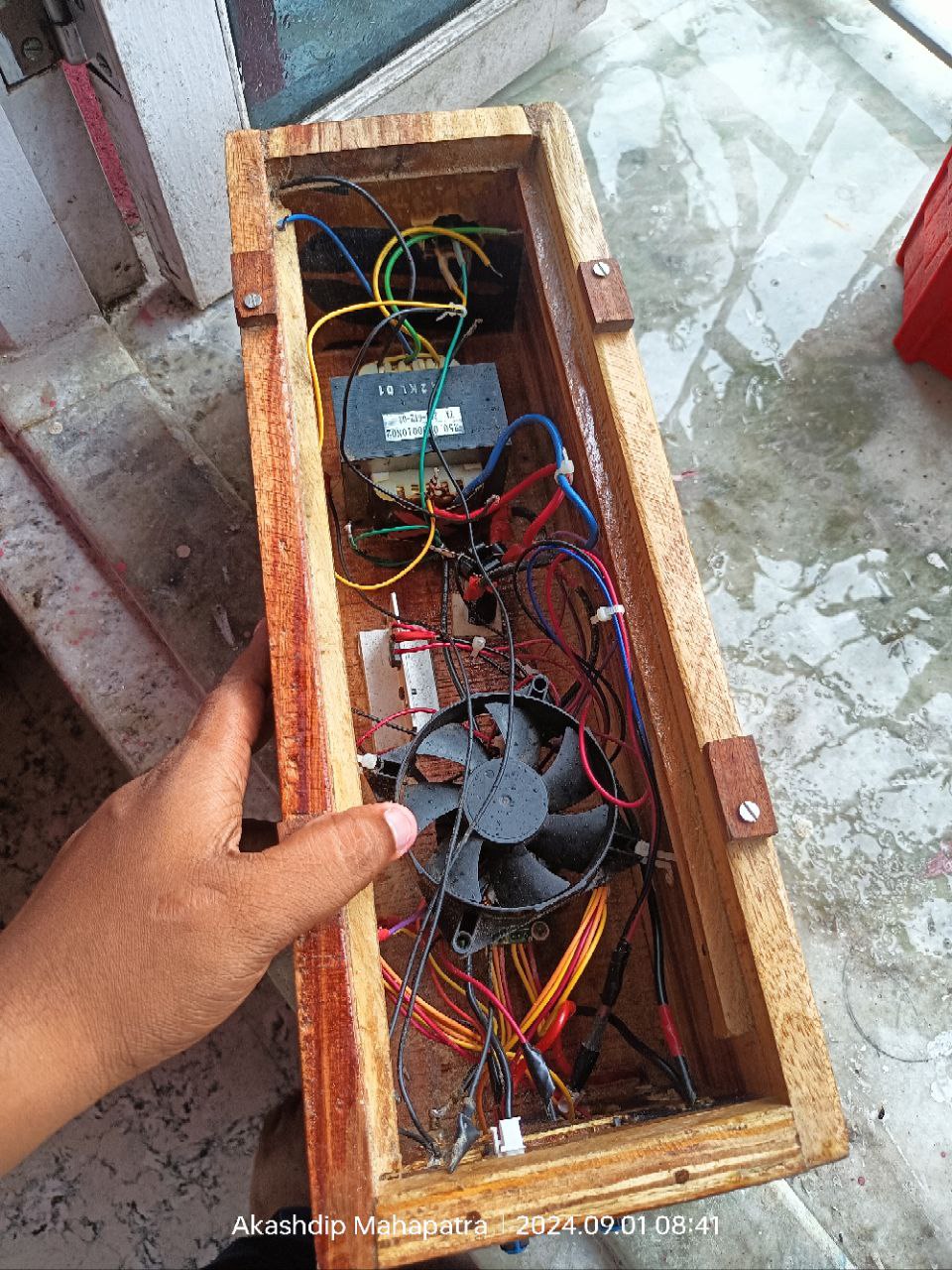

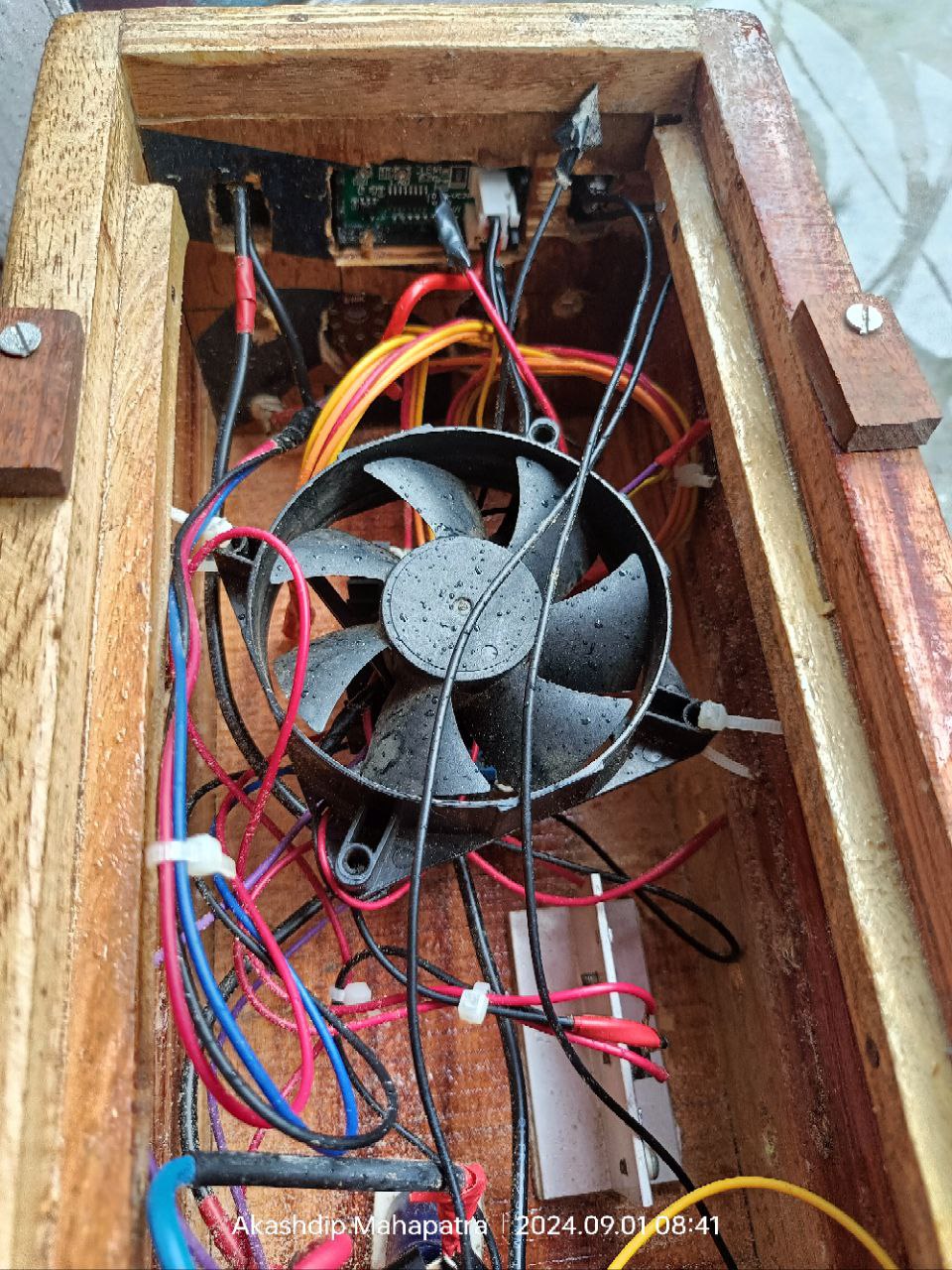

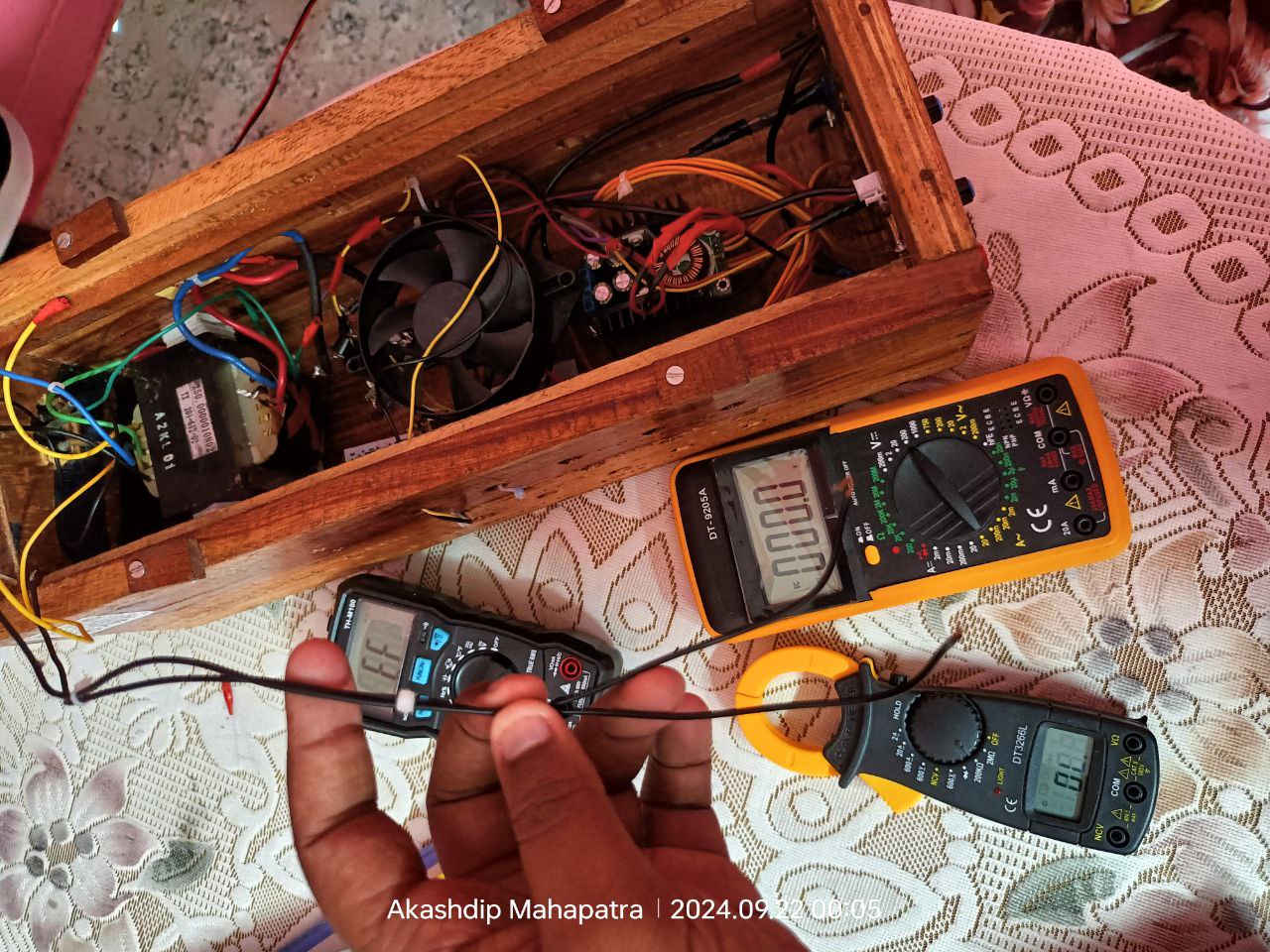

  8. Heat Sink + Fan inside for Super Cooling
  9. Main Power-input & Cutomise out-put SAPARATELY
  10. Extra 5 voltage (USB) PowerSupply using IC-7805 (wire out from Side)

⚠️ Featur Required

  • mini MCB
  • Ground not plug

    • All Parts & Total cost

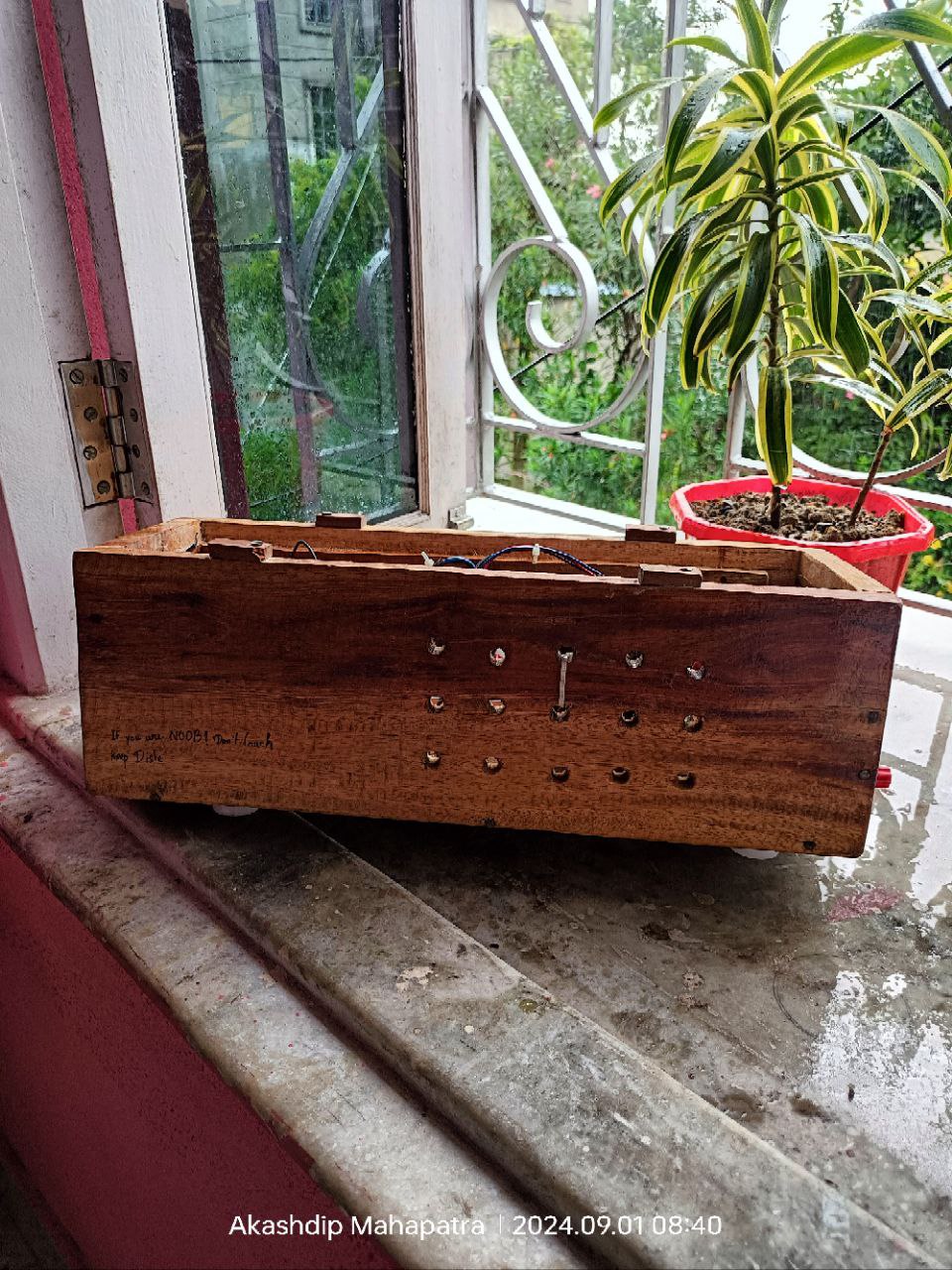

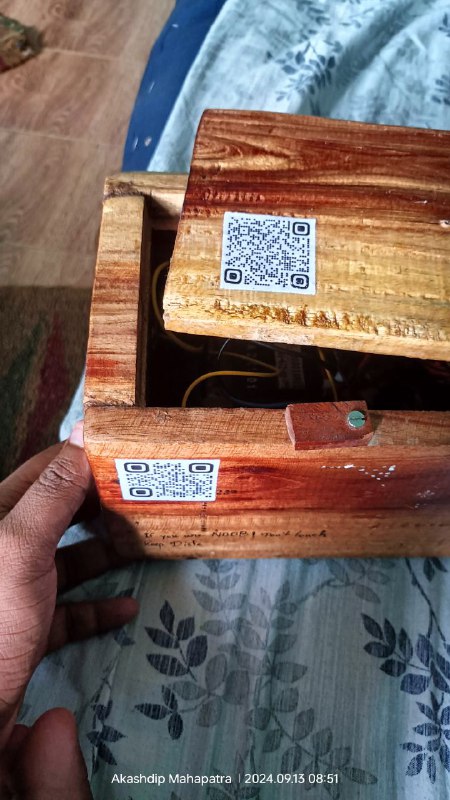

    1. Wood (15x6 inch) - 800
    2. Handles (1) - 50+5+5 = 60
    3. Screw (20) - 10
    4. Buffer (4) - 80
    5. Polish + colour - 200
    6. Switch (2) - 20
    7. Potentiometer (10kΩ X 2) - 25 + 25 = 50
    8. Holder (2) (2X1+2X1) - 35+35+20+20 = 110
    9. LED (3) - 6
    10. Wire (4mm copper)- 200
    11. Soldering Wire - 80
    12. 3 pin Jack (1) - 65
    13. Heat Shrink Wrapping Tube - 40
    14. E-Tape - 10
    15. Heat Sinker - 90
    16. IC 7815 - 25
    17. IC 7805 - 20

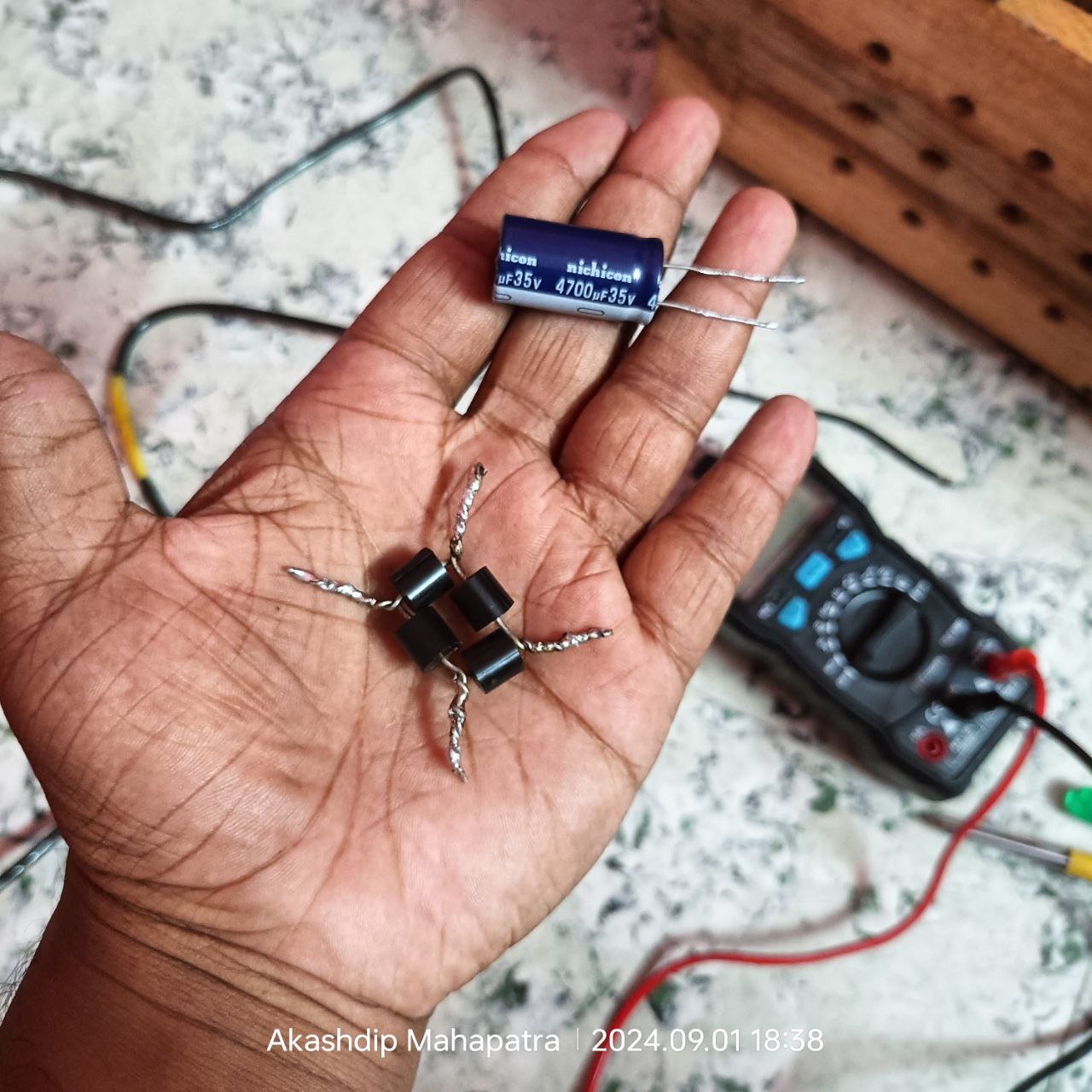

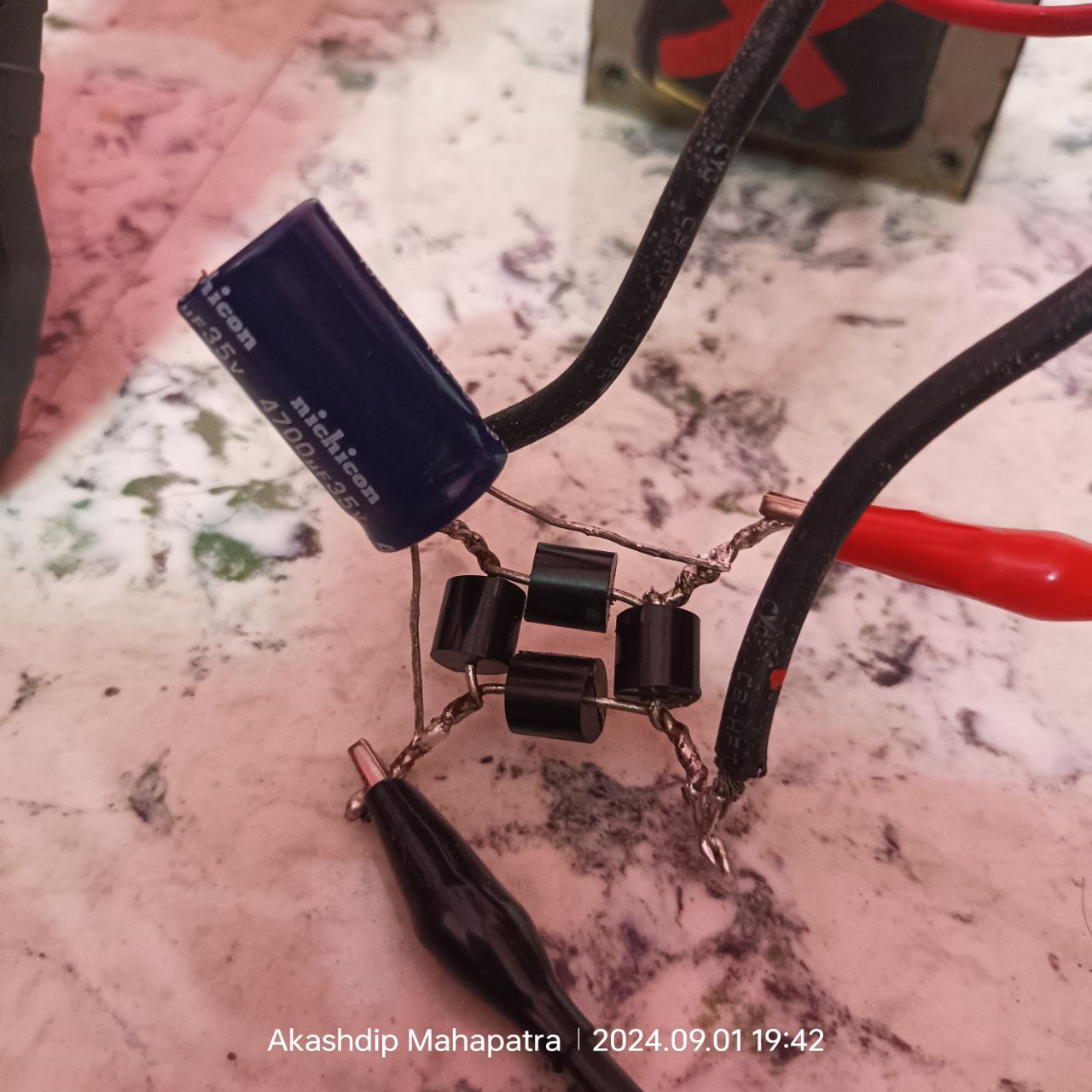

    18. 6A4 Diode (4X10) - 40

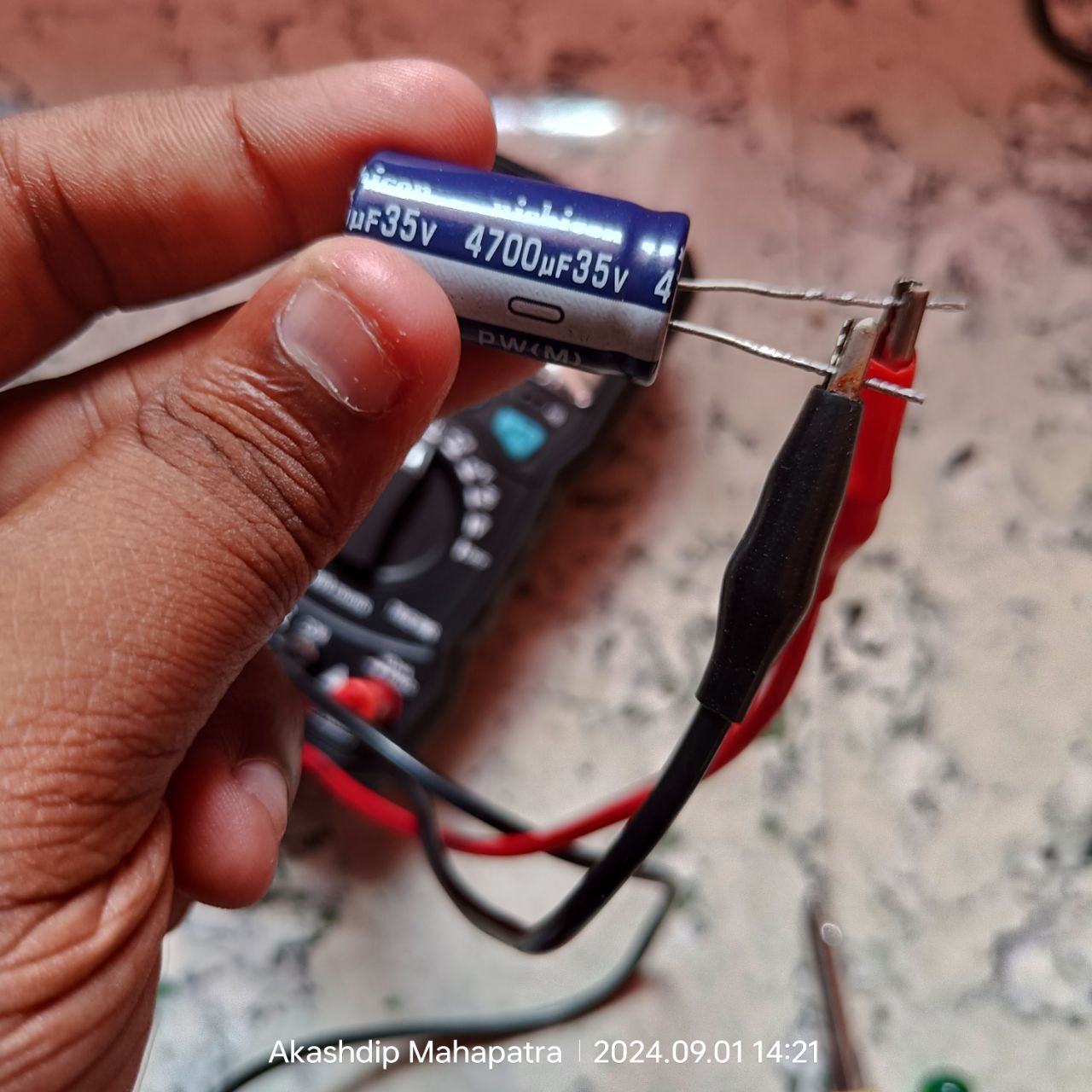

    19. Capacitor 470μF 35V - 37

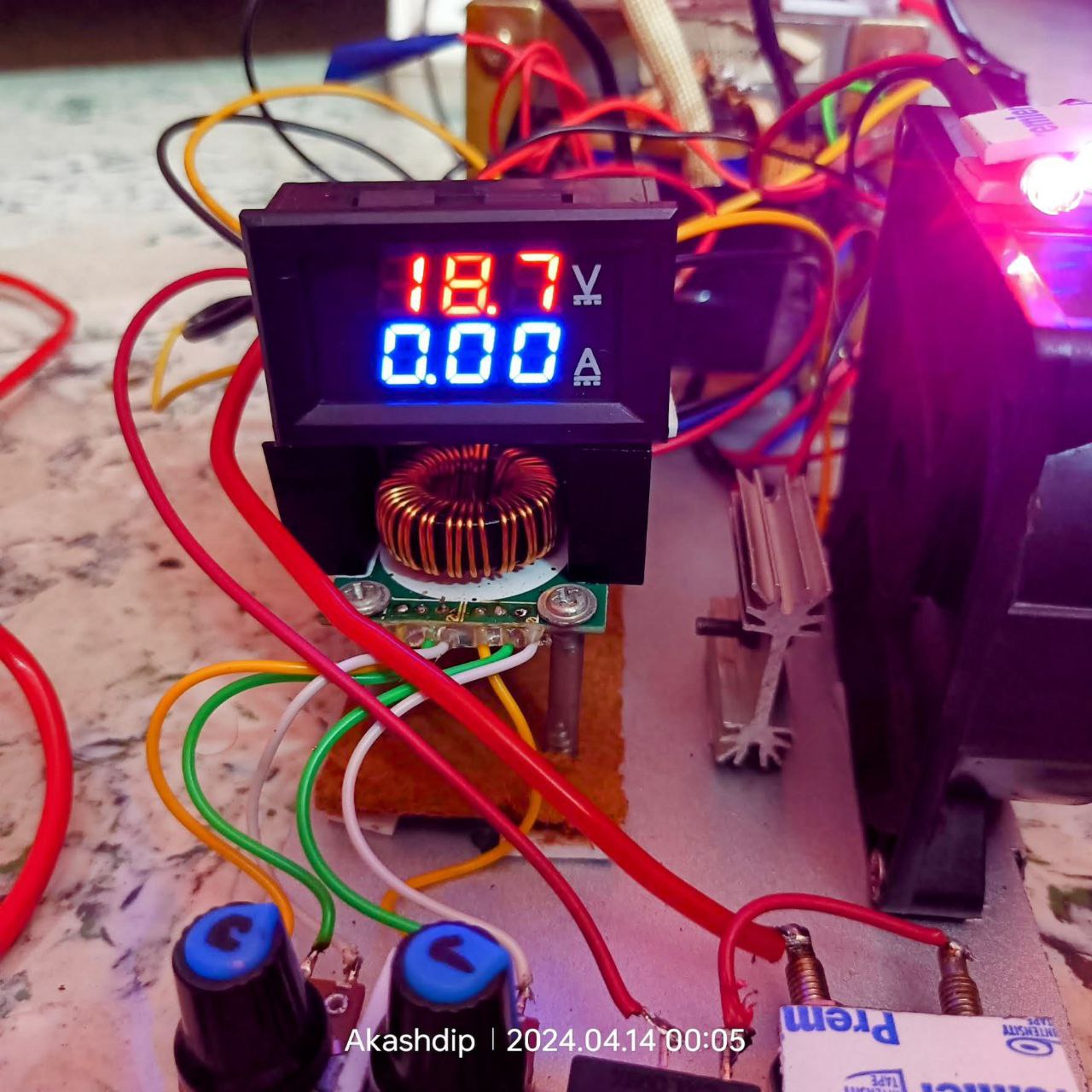

    20. 300W 10Amp 30V Buck Converter - 350
    21. Display - 250
    22. Fan - 148

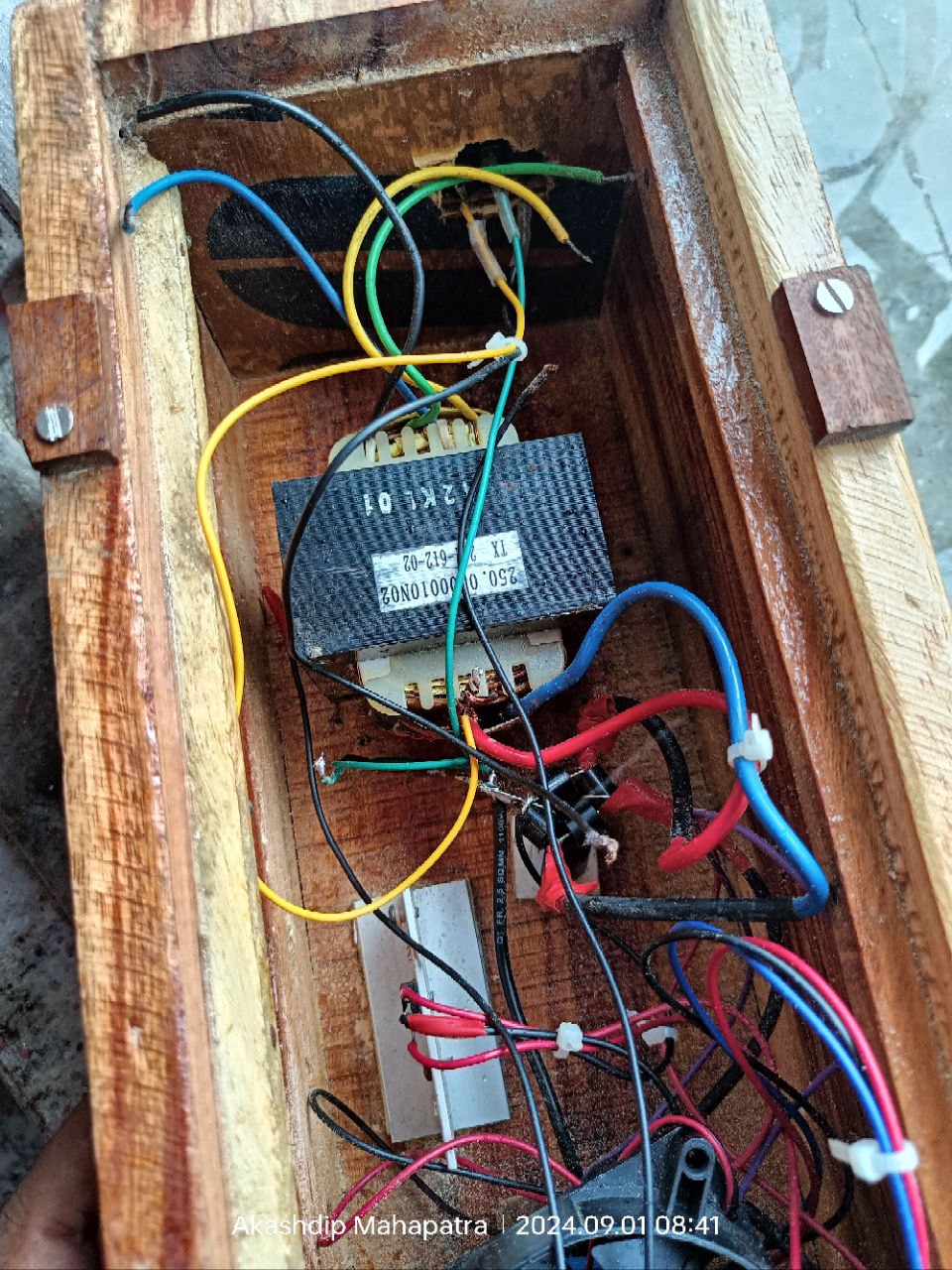

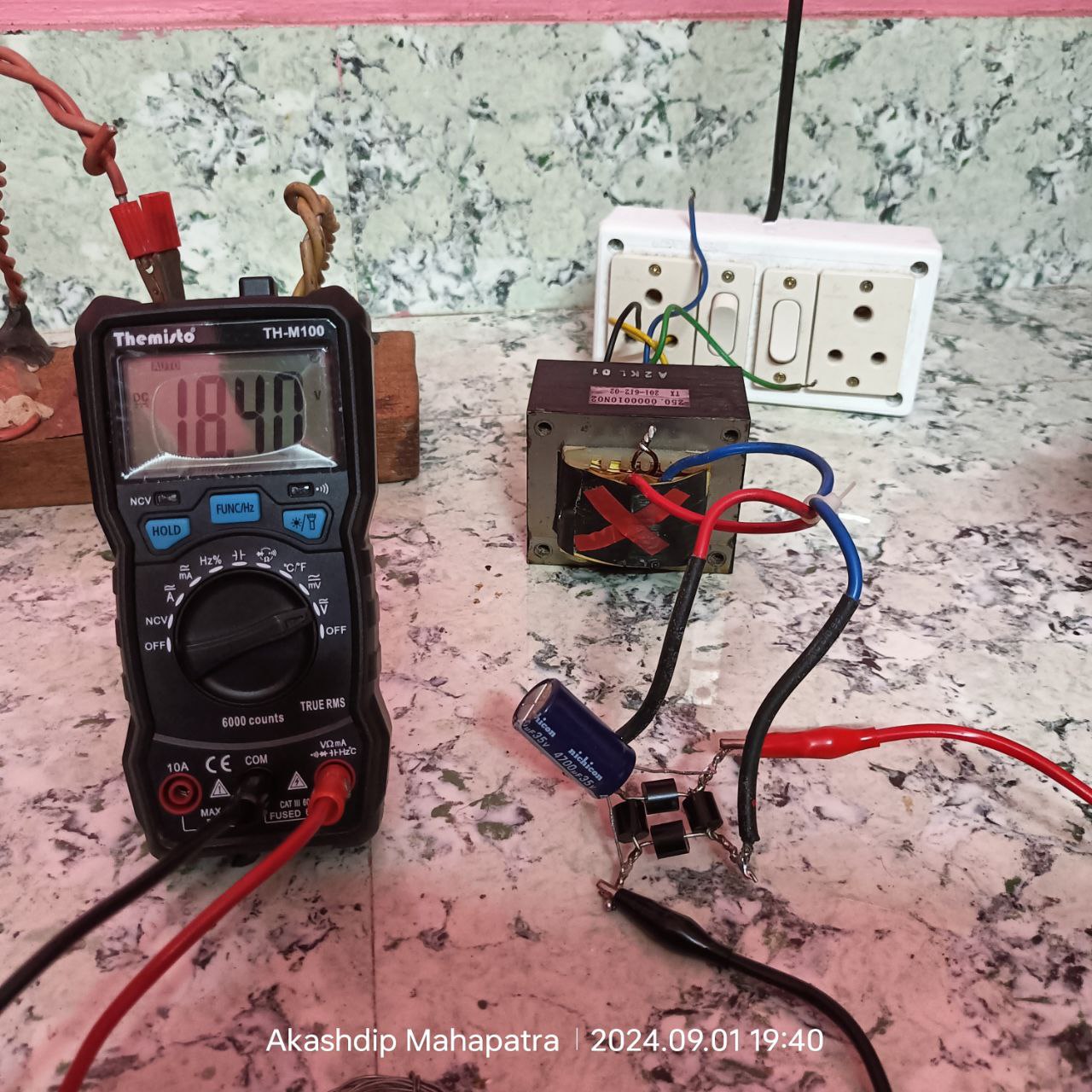

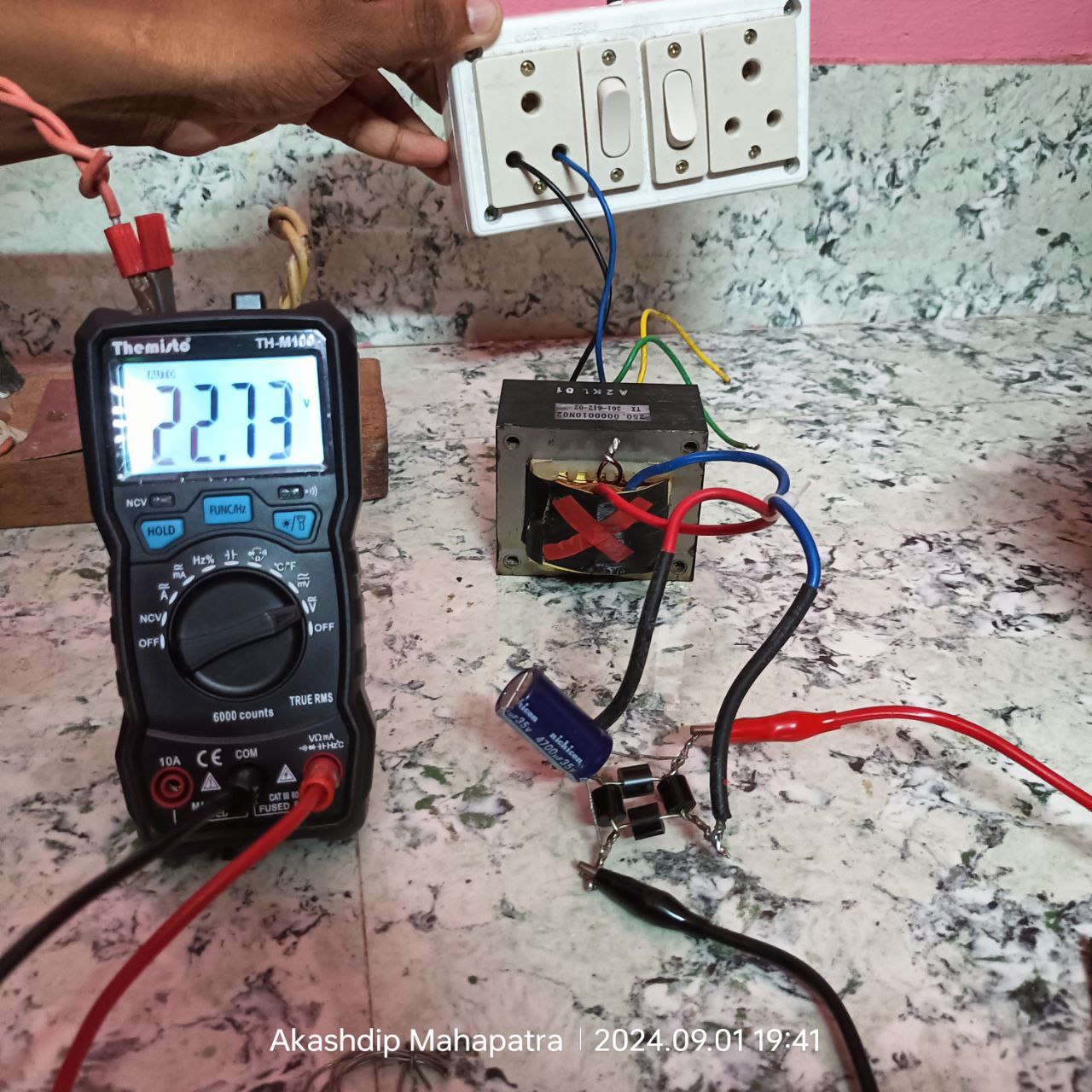

    23. SMPS Transformer - 450

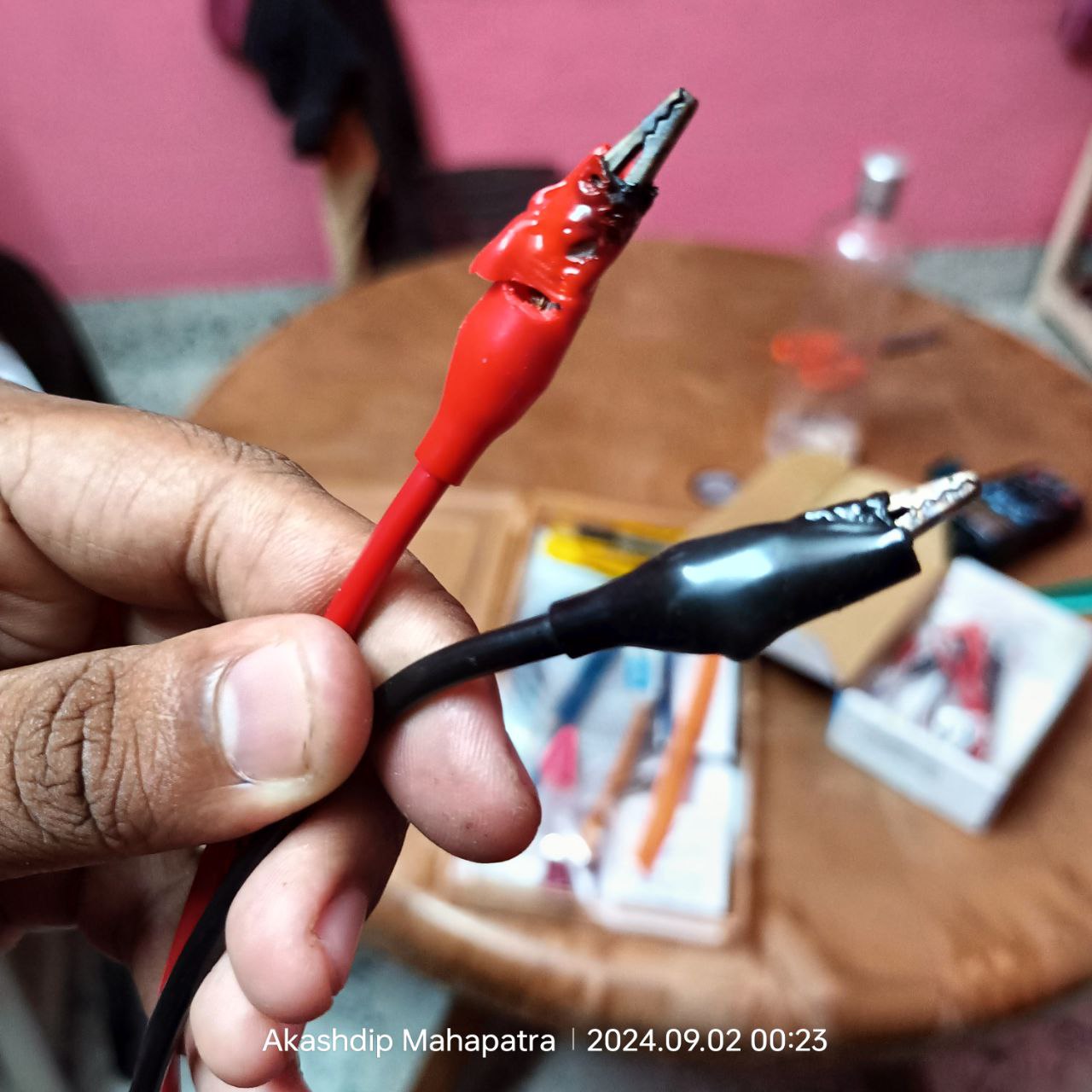

    24. Clip - 50
    25. XL4016E1 IC - 20
    26. STPS2045CTE1C (V3) - 25
    27. Heat Paper - 9

      28. ----------------

    28. Total - 3245
    29. Damage Repair in Tasting High voltage +- 150
    30. Damage --> wire+ E-Tap + Capacitor +Soldering Wire + Powe supply + Male clip wire etc...
    ⚠️ WARNING.
    ✅ standard voltage: 1.5, 3, 6 ... .
    🌐 language : Eng.
    ✅ explain about all controls .
    ⚠️ WARNING.
    ❌ Never increas the amp < 2

    comming soon

    ... .
    ✅ You have an advanced knowledge of Electrical circuits, Transformers how they work.
    ✅ If anything damages inside, You take the responsibility.
